• Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) steel, 6-lug painted includes painted center caps (spare wheel will not cosmetically match the other 4 wheels)
• Tires, P245/70R17 all-season, blackwall includes a blackwall spare tire (Requires 2WD models.)
• Wheel, 17" (43.2 cm) steel spare (spare wheel will not cosmetically match the other 4 wheels)
• Tire carrier outside spare, winch-type mounted under frame at rear
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front chrome (Includes Black bumper top caps.)
• Bumper, rear chrome, step-style with pad
• Air dam, Black

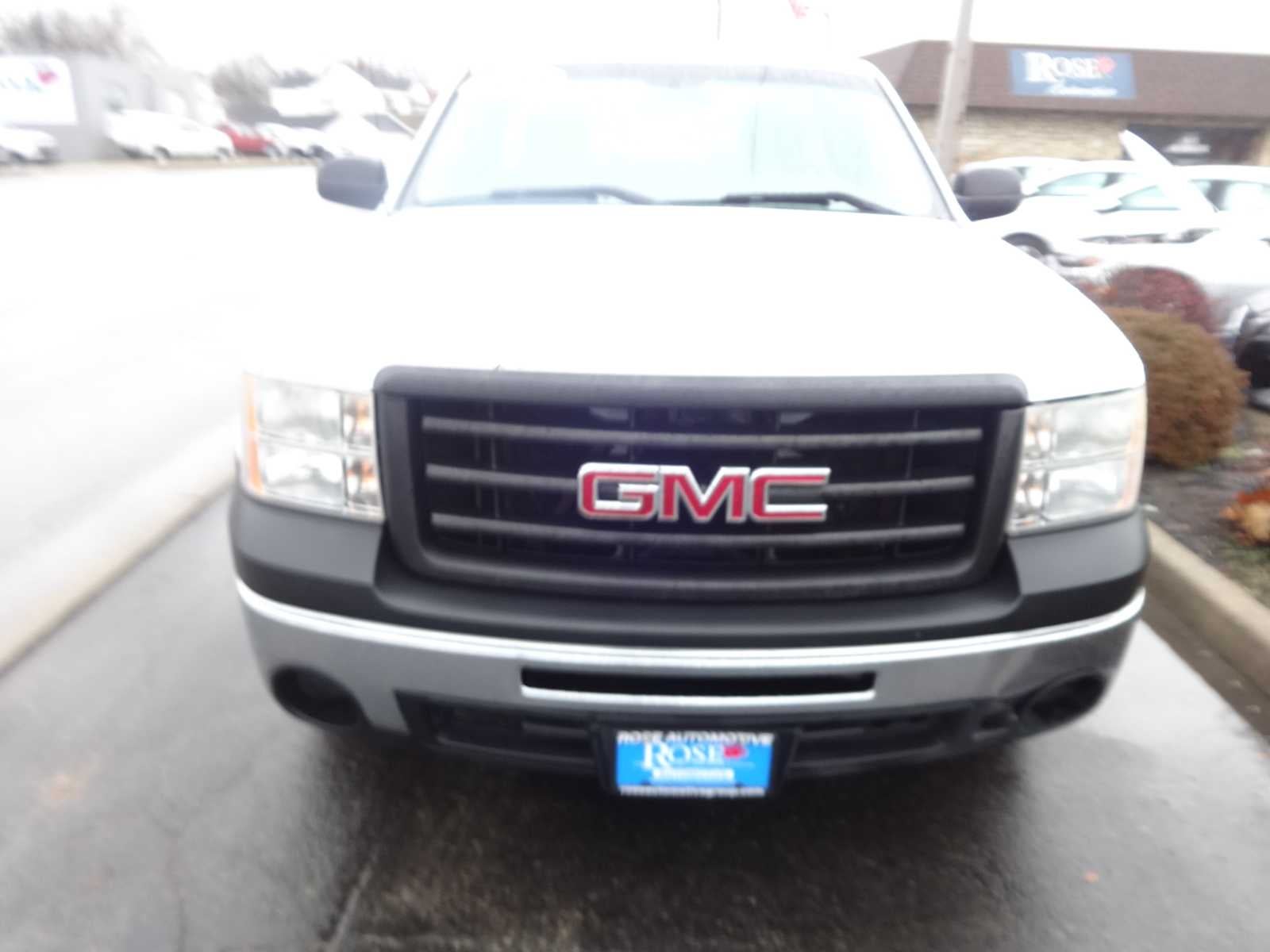

• Grille, Black surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside manual, Black, manual-folding
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection, top of tailgate protection cap
• Door handles, black

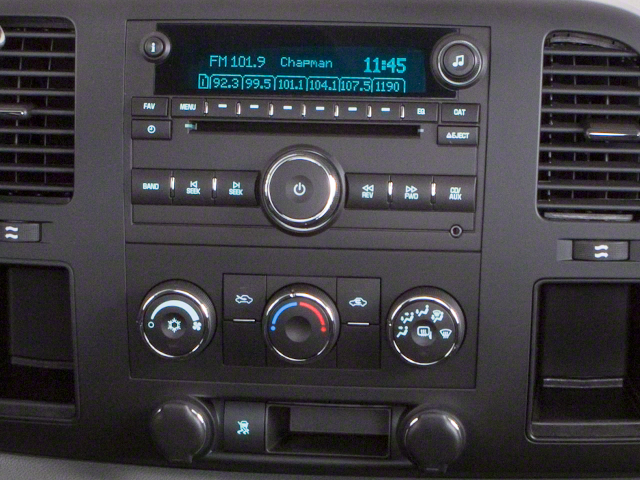

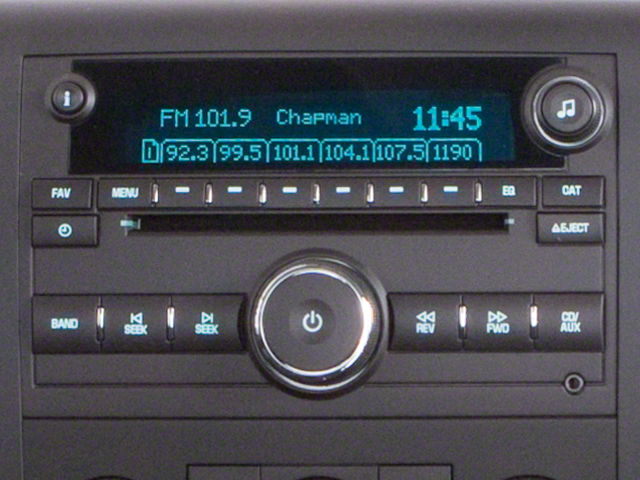

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) SiriusXM Satellite Radio.)
• SiriusXM Satellite Radio, delete
• Audio system feature, 4-speaker system (Requires Regular Cab models. Not included when (5B5) power windows, doors and locks, SEO is ordered.)

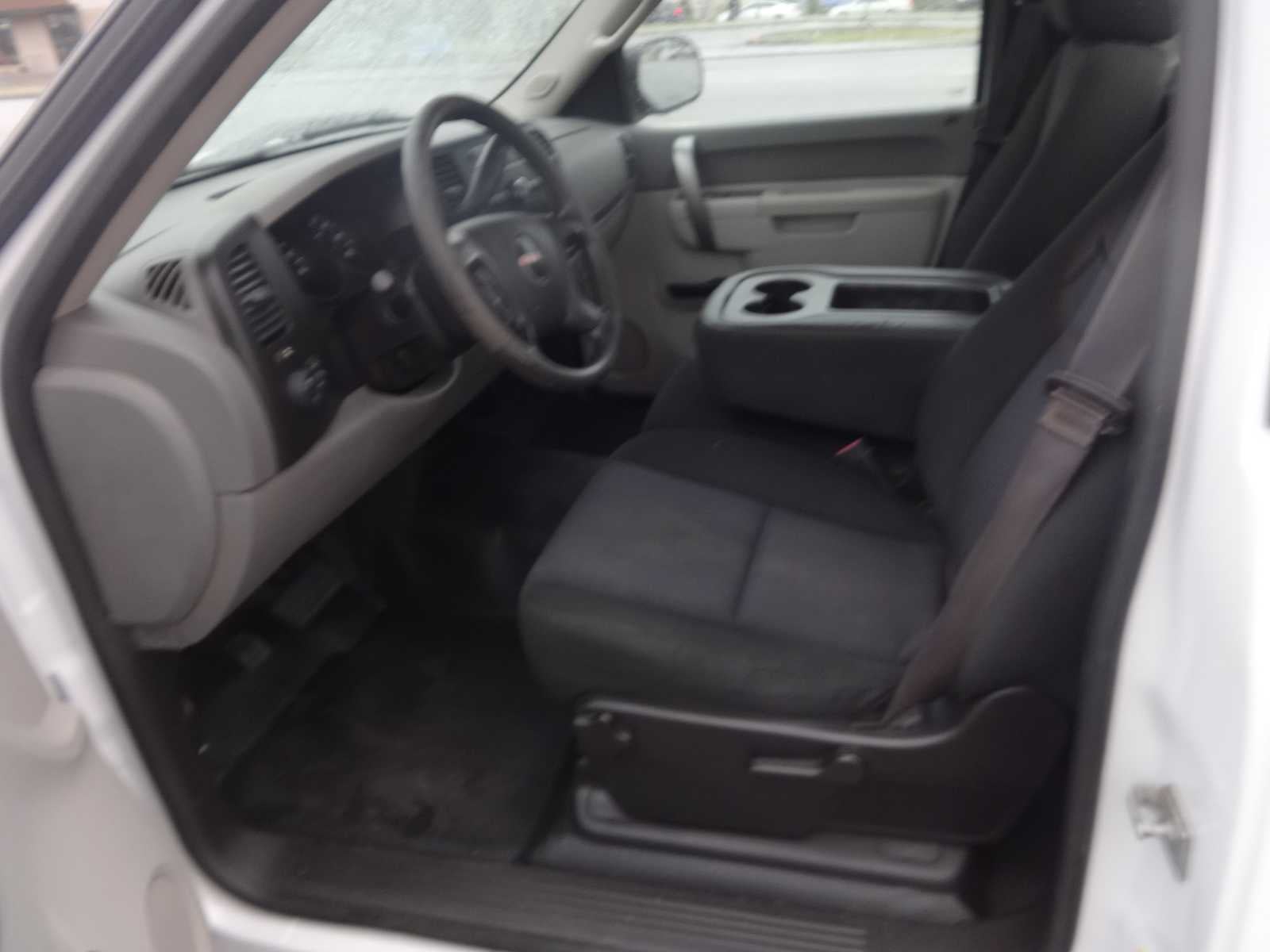

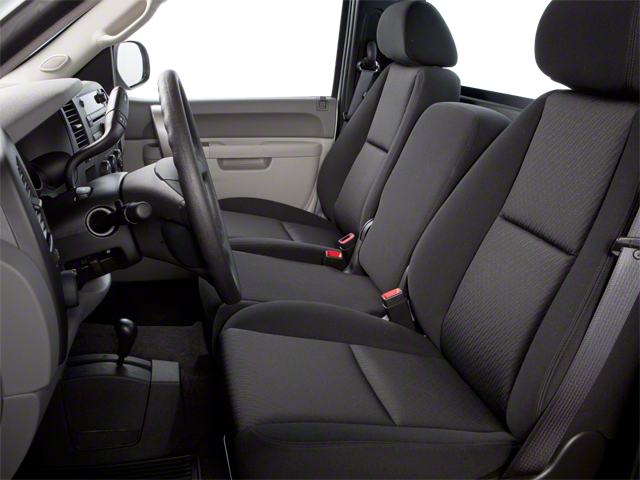

• Seats, front 40/20/40 split-bench 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Seat trim, Dark Titanium vinyl
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel includes theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

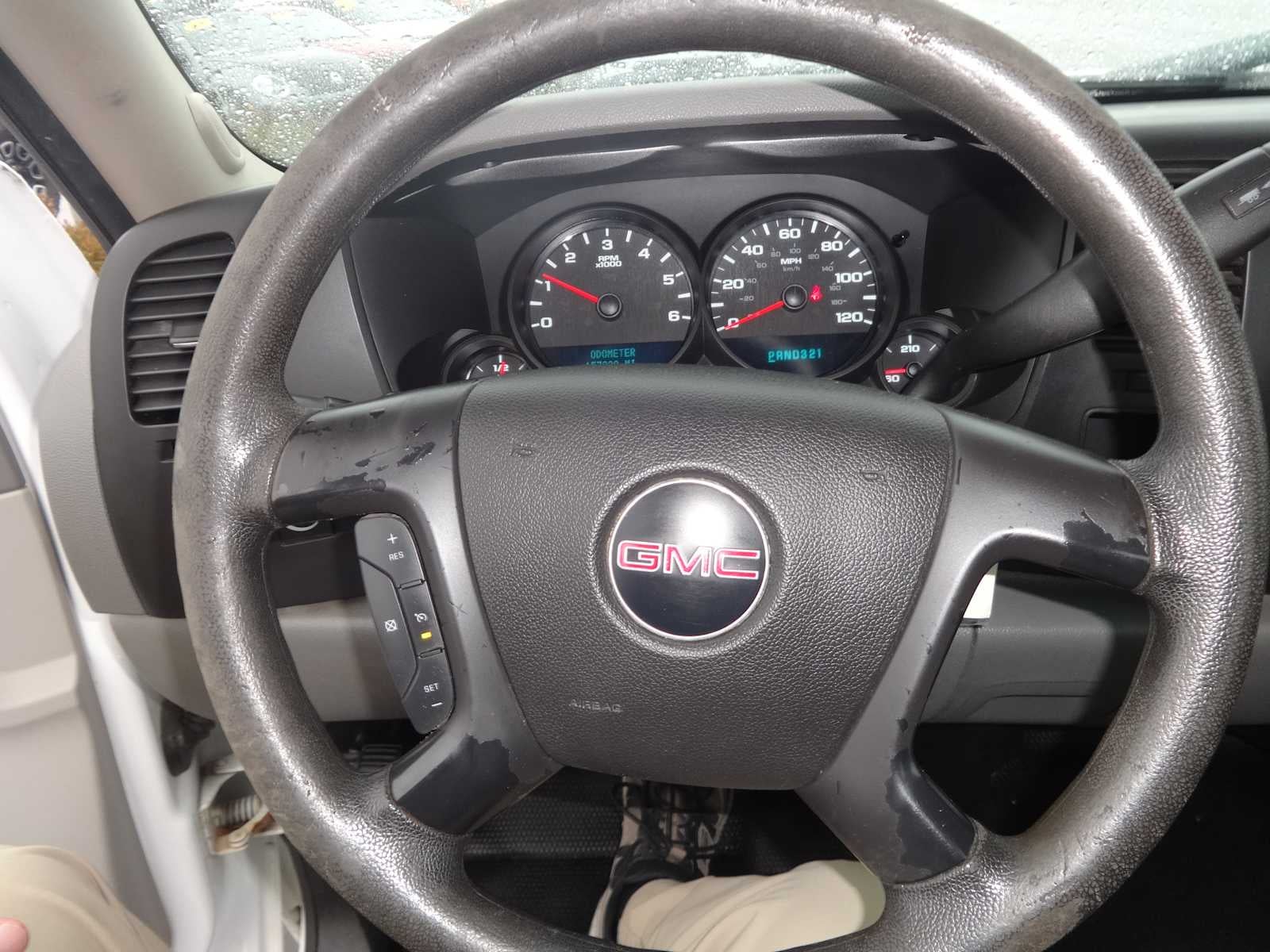

• Cruise control, electronic with set and resume speed, located on steering wheel

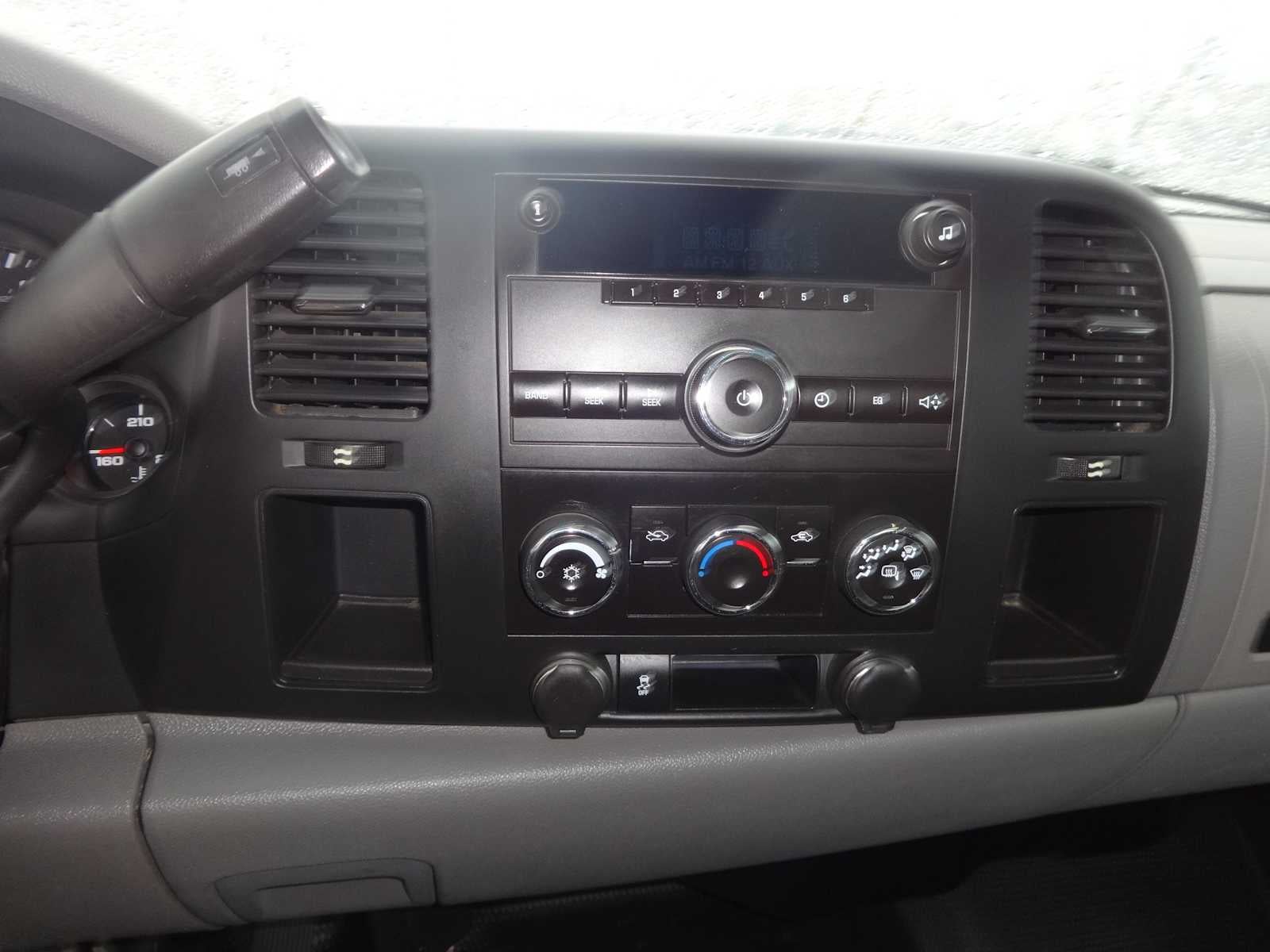

• Air conditioning, single-zone manual front climate control

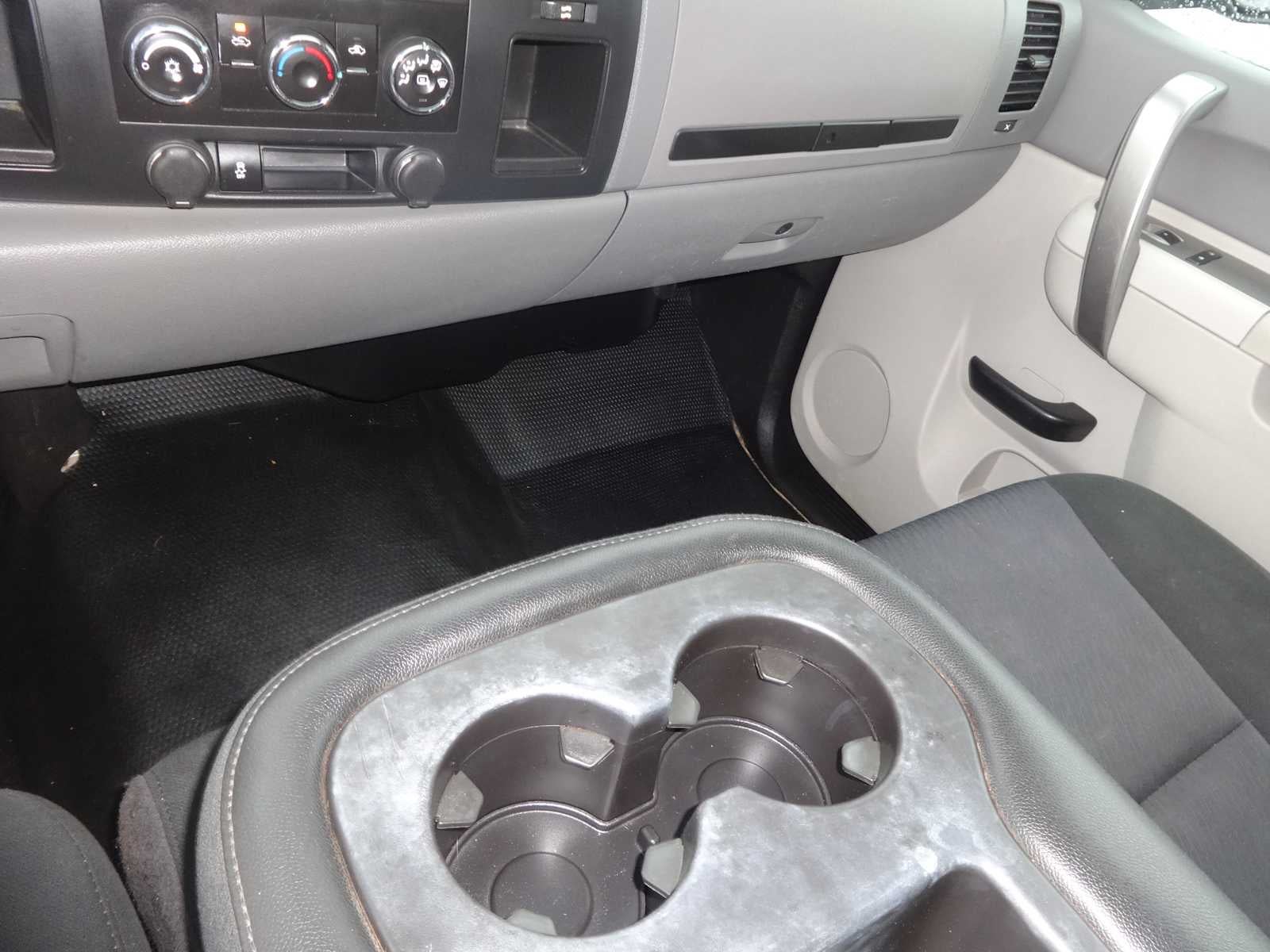

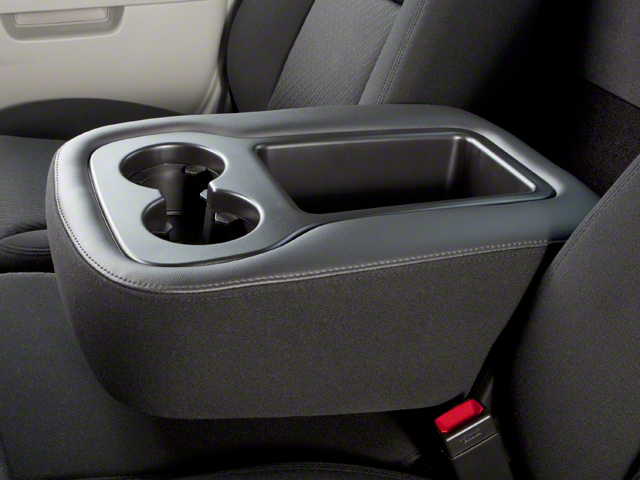

• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models. Rear cupholders are not included with (AE7) front 40/20/40 split-bench seat.)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Visors, driver and front passenger sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models.)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions with rollover sensor (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, delete
• Tire Pressure Monitor System (does not apply to spare tire)

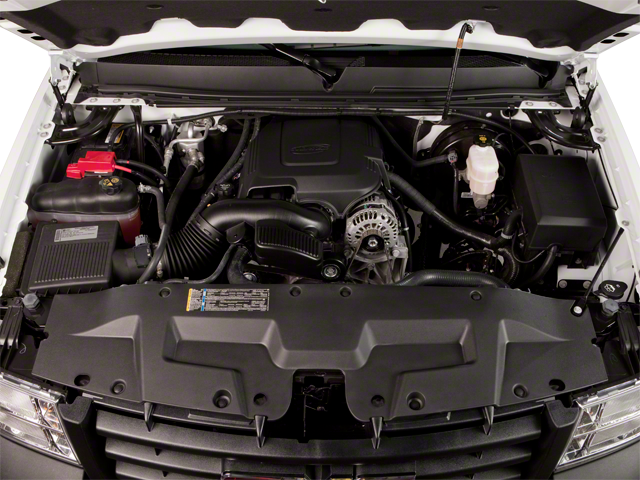

ENGINE, VORTEC 4.3L V6 MFI

• (STD)

• 5B5
• AU3
• G80
• LU3
• M30
• UM7

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 12.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3300
• Gross Axle Wt Rating - Rear (lbs): 3750
• Curb Weight - Front (lbs): 2693
• Curb Weight - Rear (lbs): 1903
• Gross Vehicle Weight Rating Cap (lbs): 6400
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 450
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 705
• Maximum Trailering Capacity (lbs): 9800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3300
• Spring Capacity - Rear (lbs): 3750
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3200
• Axle Capacity - Rear (lbs): 3750
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 1.80
• Shock Absorber Diameter - Rear (mm): 1.40
• Stabilizer Bar Diameter - Front (in): 1.40
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Tires
• Front Tire Order Code: QU1
• Rear Tire Order Code: QU1
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2304
• Spare Tire Capacity (lbs): 2304
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 19.2
• Steering Ratio (:1), At Lock: 3.5
• Turning Diameter - Curb to Curb (ft): 44.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: Driver Side
• Exterior Dimensions
• Wheelbase (in): 133.00
• Length, Overall w/o rear bumper (in): 224.50
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 73.50
• Overhang, Front (in): 39.40
• Overhang, Rear w/o bumper (in): 52.10
• Front Bumper to Back of Cab (in): 116.50
• Cab to Axle (in): 55.90
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.70
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.20
• Ground Clearance, Rear (in): 13.40
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): 61.50
• Cargo Box Width @ Floor (in): 62.40
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.50
• Cargo Volume (ft³): 75.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.50
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 62.50
• Summary

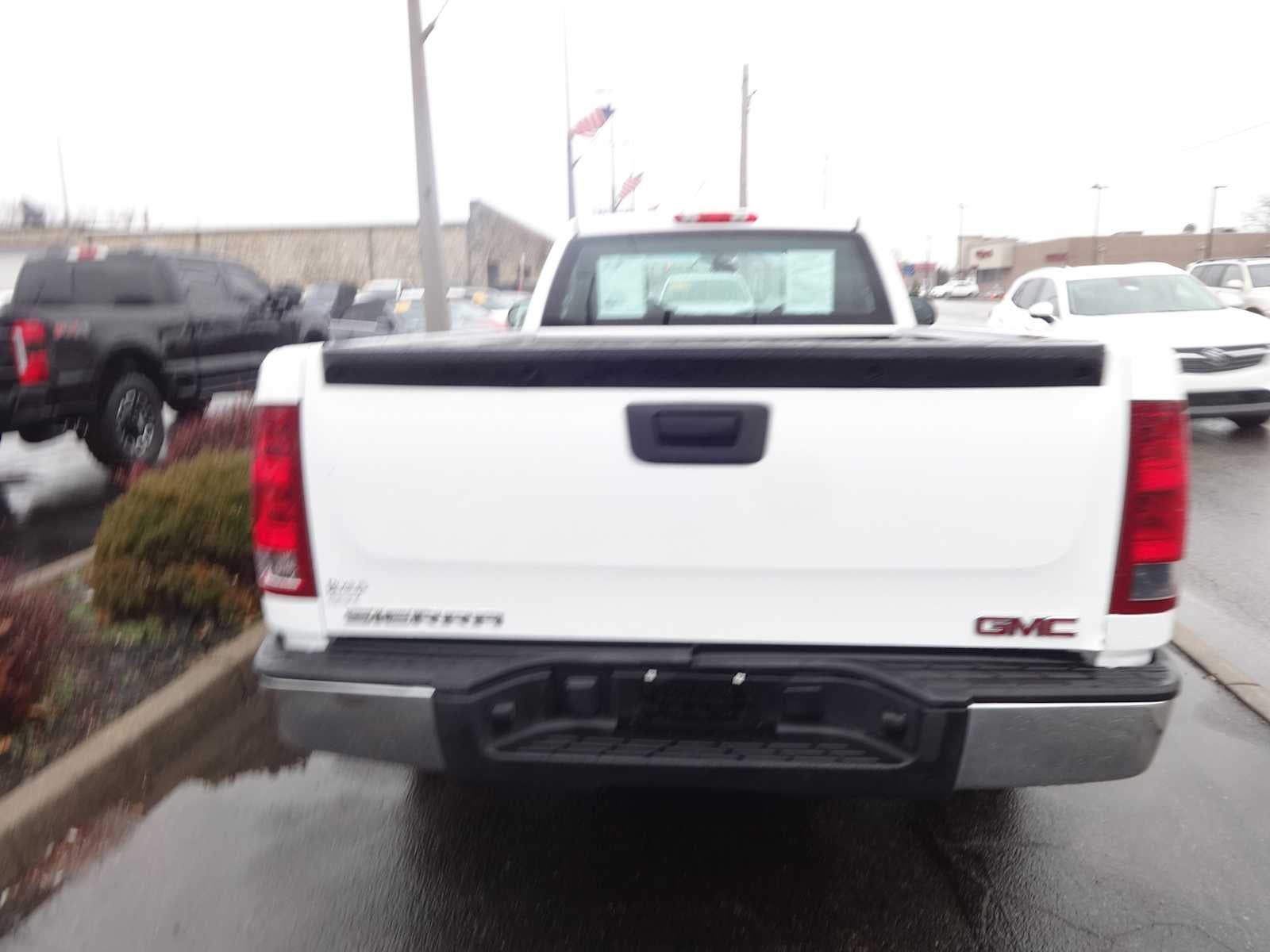

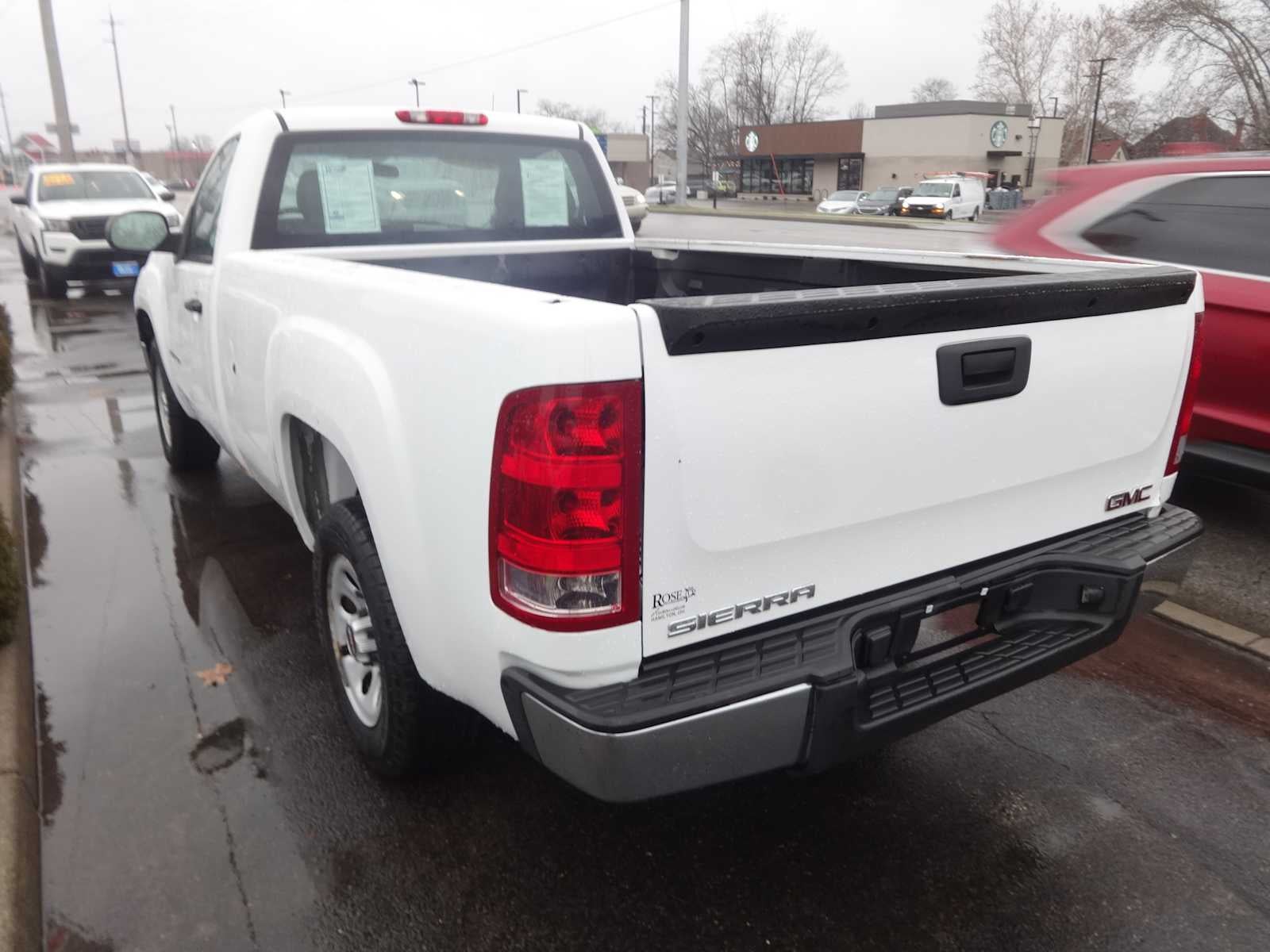

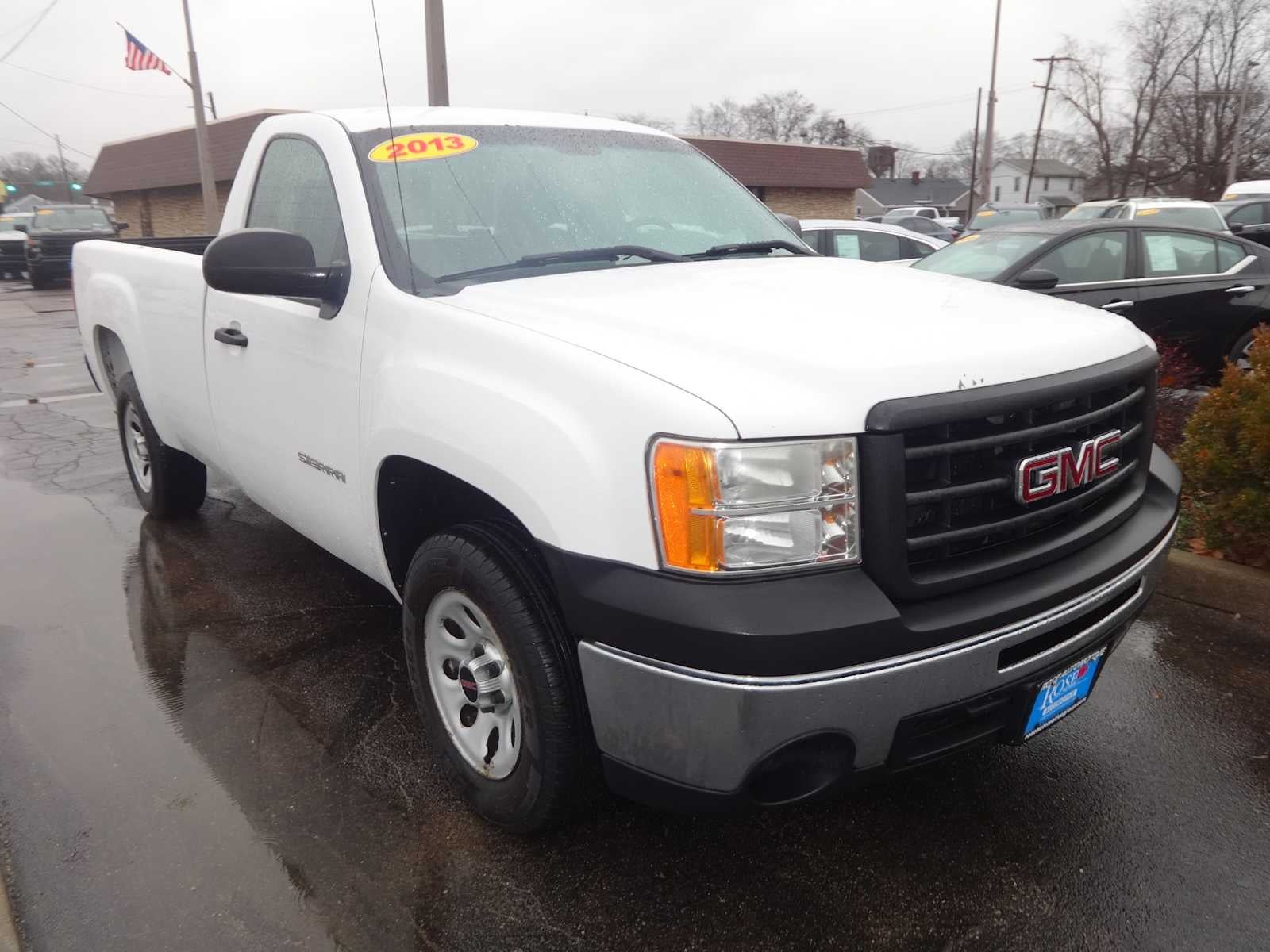

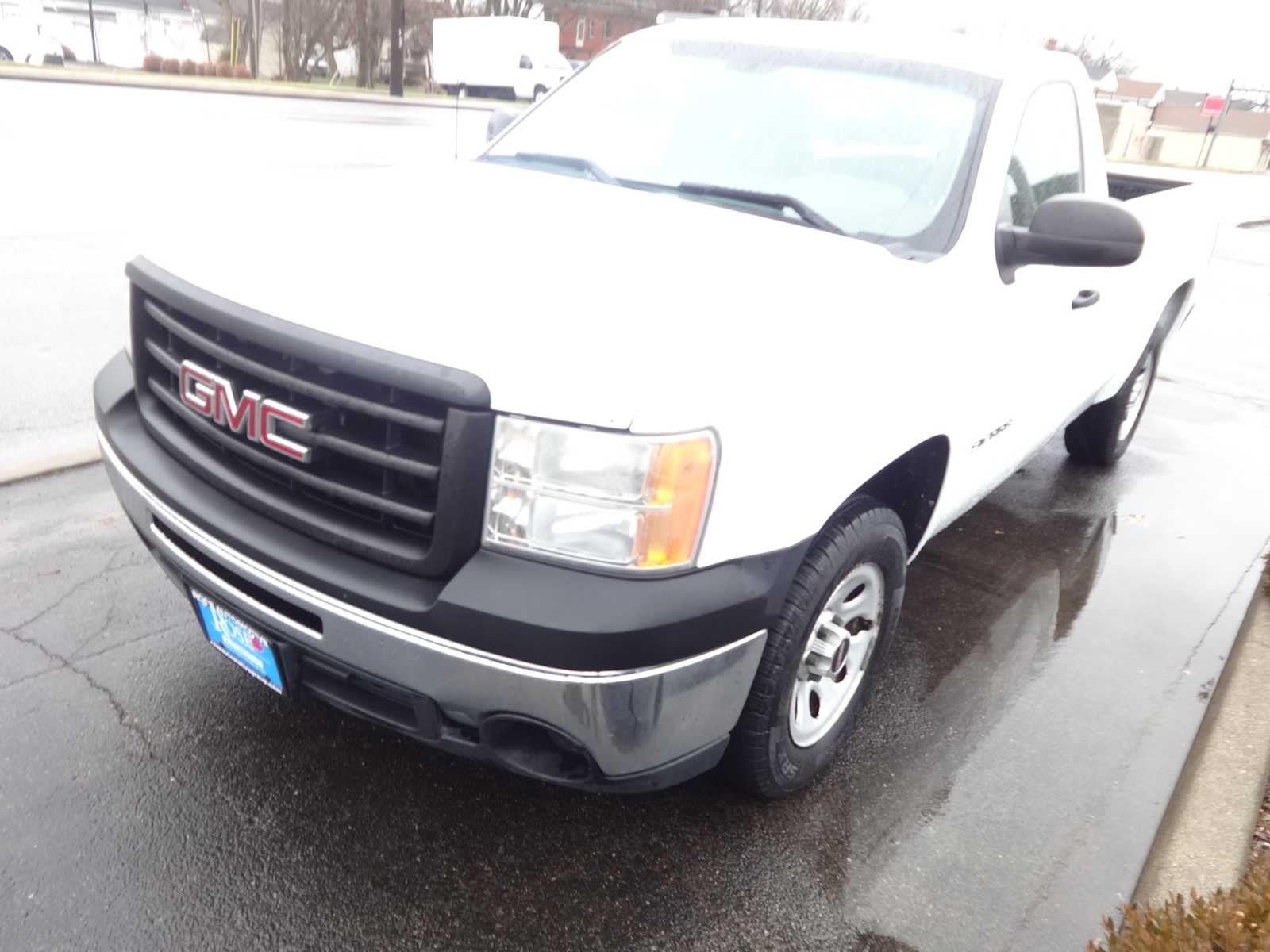

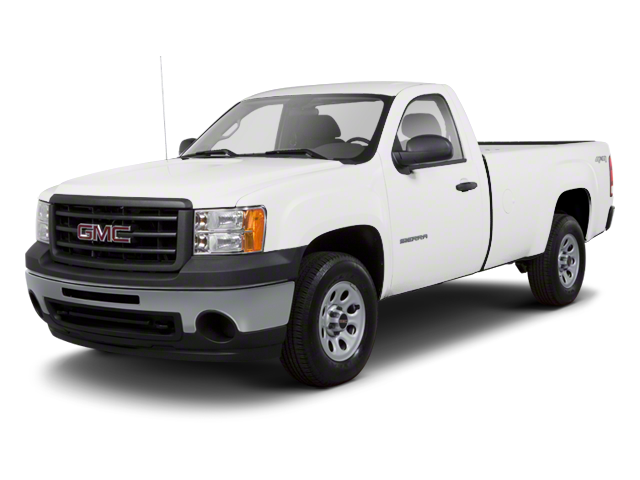

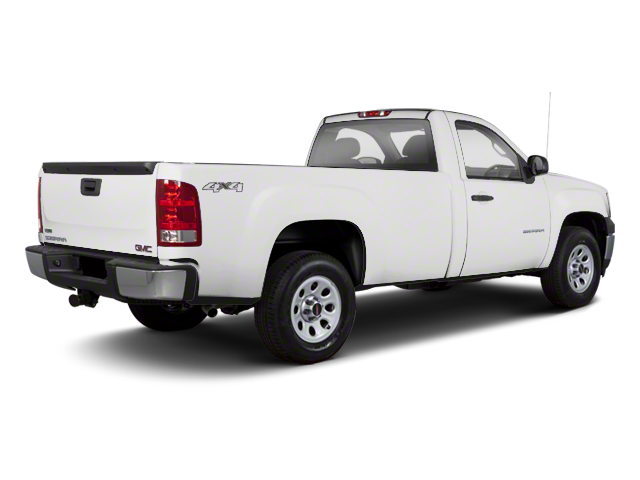

• Vehicle Name: GMC Sierra 1500
• Body Style: Reg Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.7
